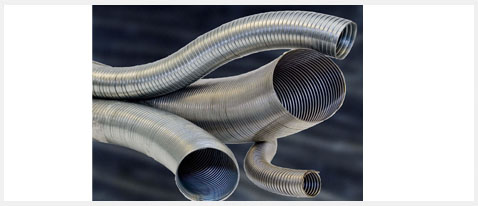

Interlock Tar & Asphalt Hose (Pressure Hose)

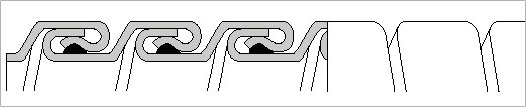

Packed Interlock Pressure Hose Locking Section Profile:
Description:
The Interlock Tar and Asphalt hose offered by us is pressure tight packed strip wound interlocked hose that is made using stainless steel or hot dipped galvanized steel. It is packed in synthetic fiber that ensure the leak proofing of the hose in the exceeding temperature conditions and when the hose is flexed repeatedly. These hoses are specially designed for tank and truck loading and unloading connections, road surfacing equipment, hand held Sprayers and in the application of roofing materials.
Specifications:
The hose is usually used in road repairing applications like patch work or spraying. Further uses involves, using it as a connector for high pressure steam, transfer of tar & asphalt, unloading of barge & tank car, in transferring fuel oil and as air intake lines.
PFEX Interlock Flexible Metal Tar & Asphalt Hose (Pressure Hose).
Technical Specification :
| DN | Inside diameter | Outside diameter | Permissible Tolerance | Minimum Bending radius |
| mm | mm | mm | mm | |
| ¾” | 19 | 26.0 | ± 0.3 | 150 |
| 1” | 25 | 32.0 | ± 0.3 | 175 |
| 1.1/4” | 32 | 40.0 | ±0.5 | 275 |
| 1.1/2” | 38 | 46.0 | ± 0.5 | 350 |
| 1.3/4” | 45 | 52.0 | ± 0.5 | 400 |
| 2” | 51 | 59.0 | ± 0.5 | 425 |
| 2.5” | 63 | 71.0 | ± 0.7 | 450 |
| 3” | 76 | 84.0 | ± 0.7 | 475 |
| 4” | 101 | 110.0 | ± 0.7 | 500 |
Features:
" High strength construction. " Balance interlocked construction. " Temperature and corrosion resistant. " Durability. " Flexibility. " Can be formed and hold its shape and easily moved. " Service life.
Applications:
" Transfer of High Temperature Steam, Tar & Asphalt for road repair ,spray & patch work. " Tank & Truck loading & Unloading connections. " Fuel Oil Transfer.
Maximum service temperature:
" Stainless steel : 7500C " Galvanized steel : 3500 C Service temperature may vary due to choice of packing material: cotton, rubber, ceramic or glass fiber yarn.
